Plan: Plane One, Plane Pro

Plane One enables custom SSO via any identity provider with an official and supported implementation of OIDC standards. This page cites examples from Okta, but we will soon publish provider-specific instructions in phases.

​
OIDC

You will need to configure values on your IdP first and then on Plane later.

​
On your preferred IdP

Create a Plane client or application per your IdP’s documentation and configure ↓.

domain.tld is the domain that you have hosted your Plane app on.

ConfigKey
Origin URLhttp(s)://domain.tld/auth/oidc/
Callback URLhttp(s)://domain.tld/auth/oidc/callback/
Logout URLhttp(s)://domain.tld/auth/oidc/logout/

​
On Plane

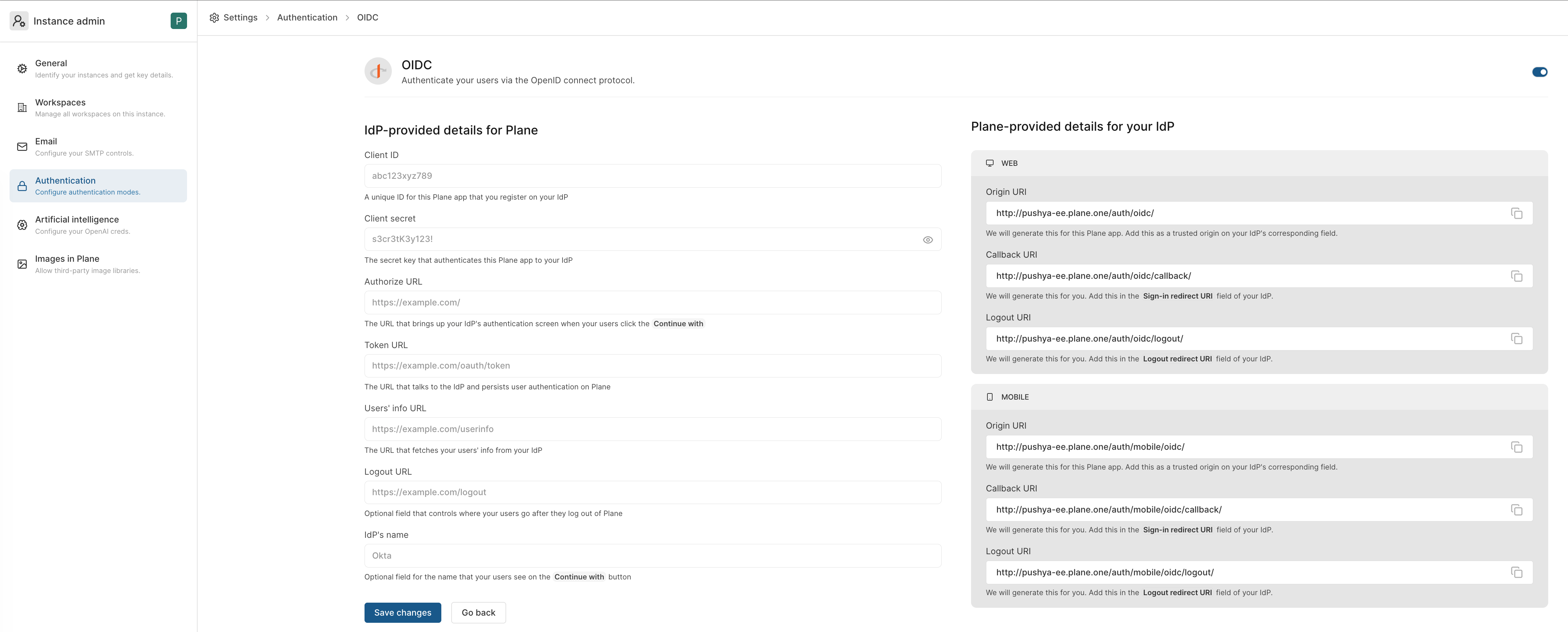

Go to /god-mode/authentication/oidc on your Plane app and find the configs ↓.

Your IdP will generate some of the following configs for you. Others, you will specify yourself. Just copy them over to each field.

  • Copy the CLIENT_ID for the Plane client or app you just created over from your IdP and paste it in the field for it.

    With providers like Keycloak, you have to choose a unique ID per app your configure. With providers like Okta and Auth0, you copy over the generated ID over to Plane. Typically, you will find it on the Plane application Home or Settings page on your IdP.

  • Copy the CLIENT_SECRET for the Plane client or app you created over from your IdP and paste it in the field for it.

    The secret is usually auto-generated and you just need to copy it over from the Plane app or client’s Home or Settings page.

  • Copy the TOKEN URL from your IdP and paste it into the field for it on /god-mode/authentication/oidc/.
    Typically used to maintain user authentication and to persist it with refreshes, this URL lives in the .well-known/ directory for the Plane app or client on your IdP.

  • Copy the User info URL from your IdP and paste it into the field for it on /god-mode/authentication/oidc/.

    Used to get an authenticating user’s email, first_name and the last_name values from the IdP, this too can be copied over from the .well-known/ directory.

  • Copy the Authorize URL over from the .well-known/ directory and paste it into the field for it on Plane’s /god-mode/authentication/oidc/.

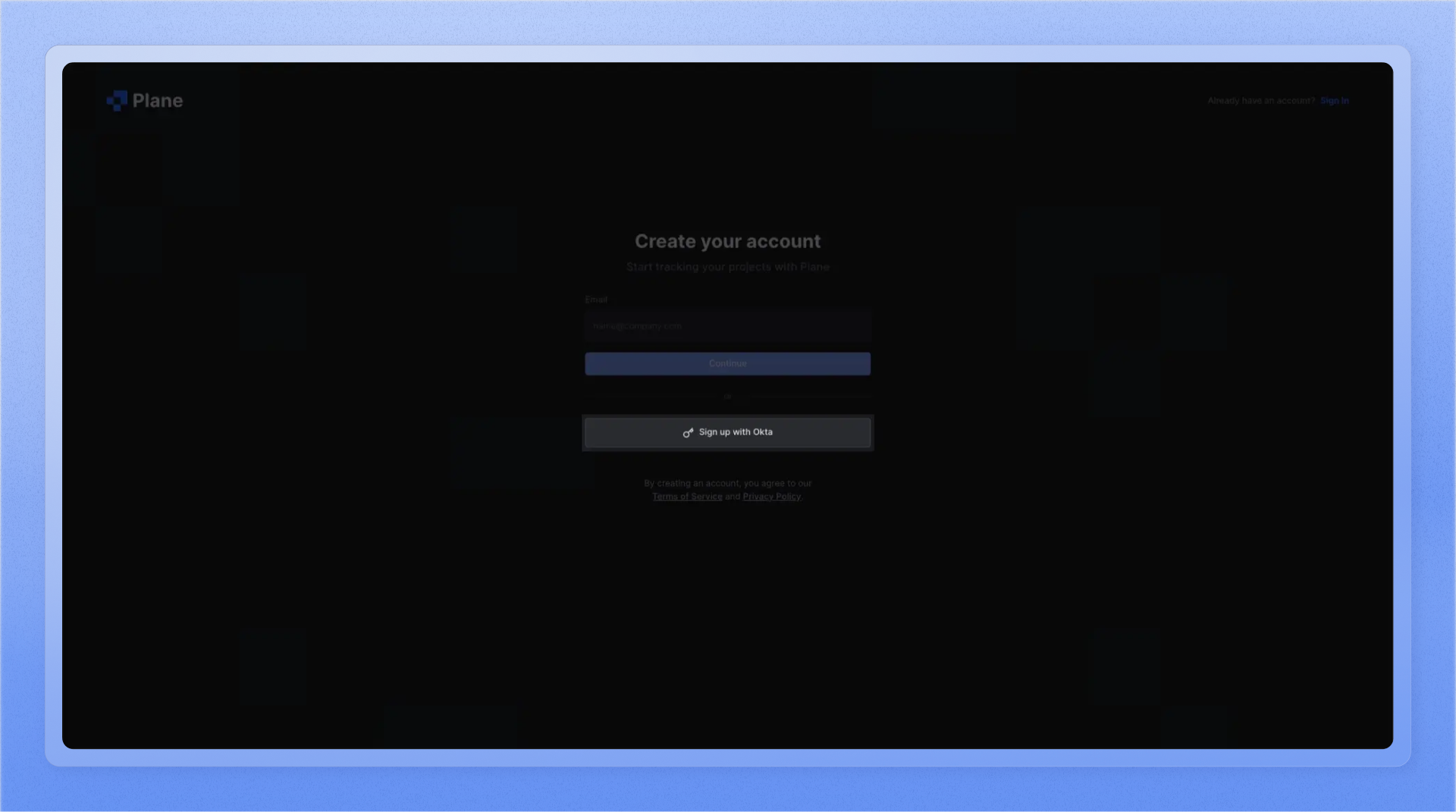

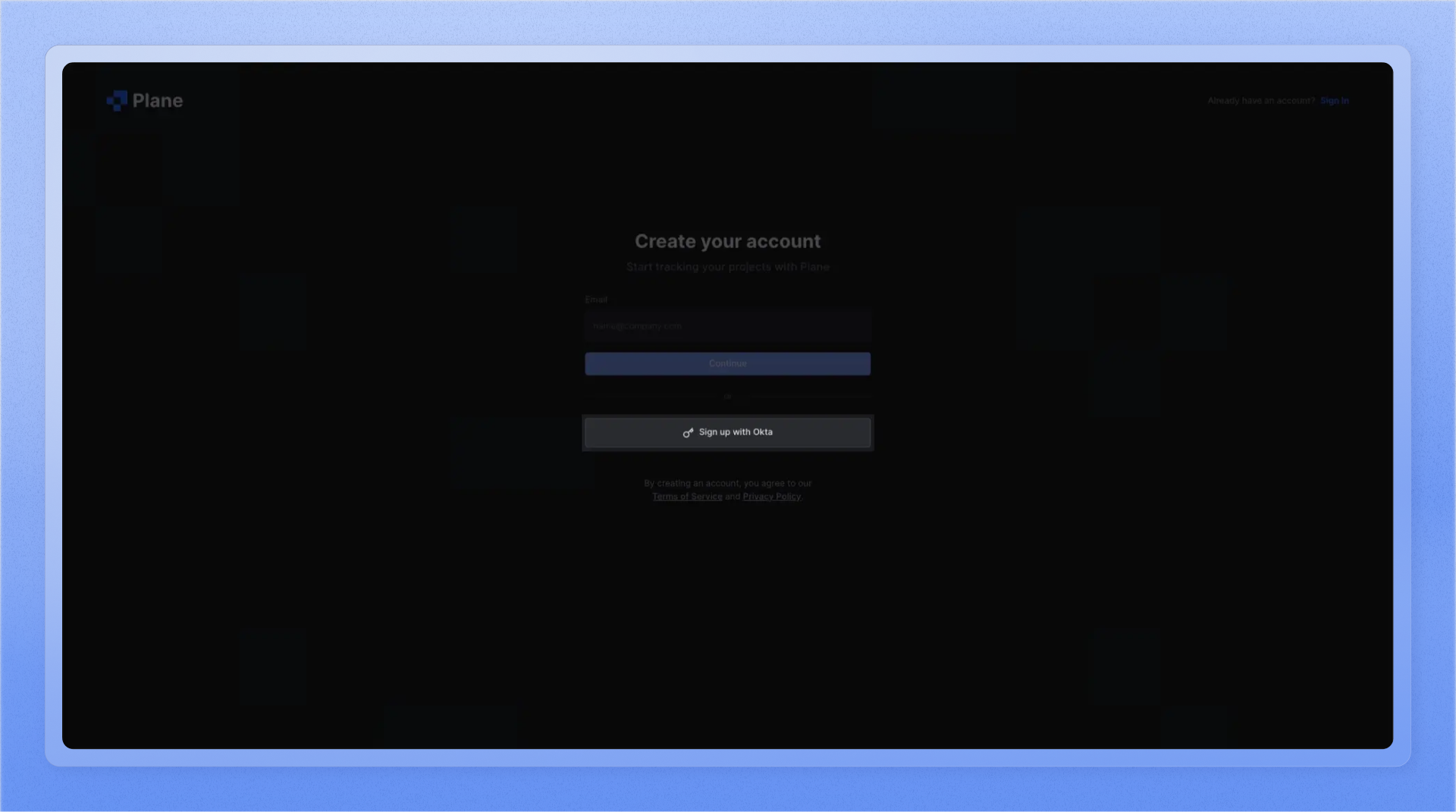

    This is the URL that Plane’s login screen redirects to when your users click Sign up with <name of IDP> or Login with <name of IdP>.

    To test if this URL is right, see if clicking the Login with <name of your IdP> button brings up your IdP’s authentication screen.

  • Finally, choose a name for your IdP on Plane so you can recognize this set of configs.
